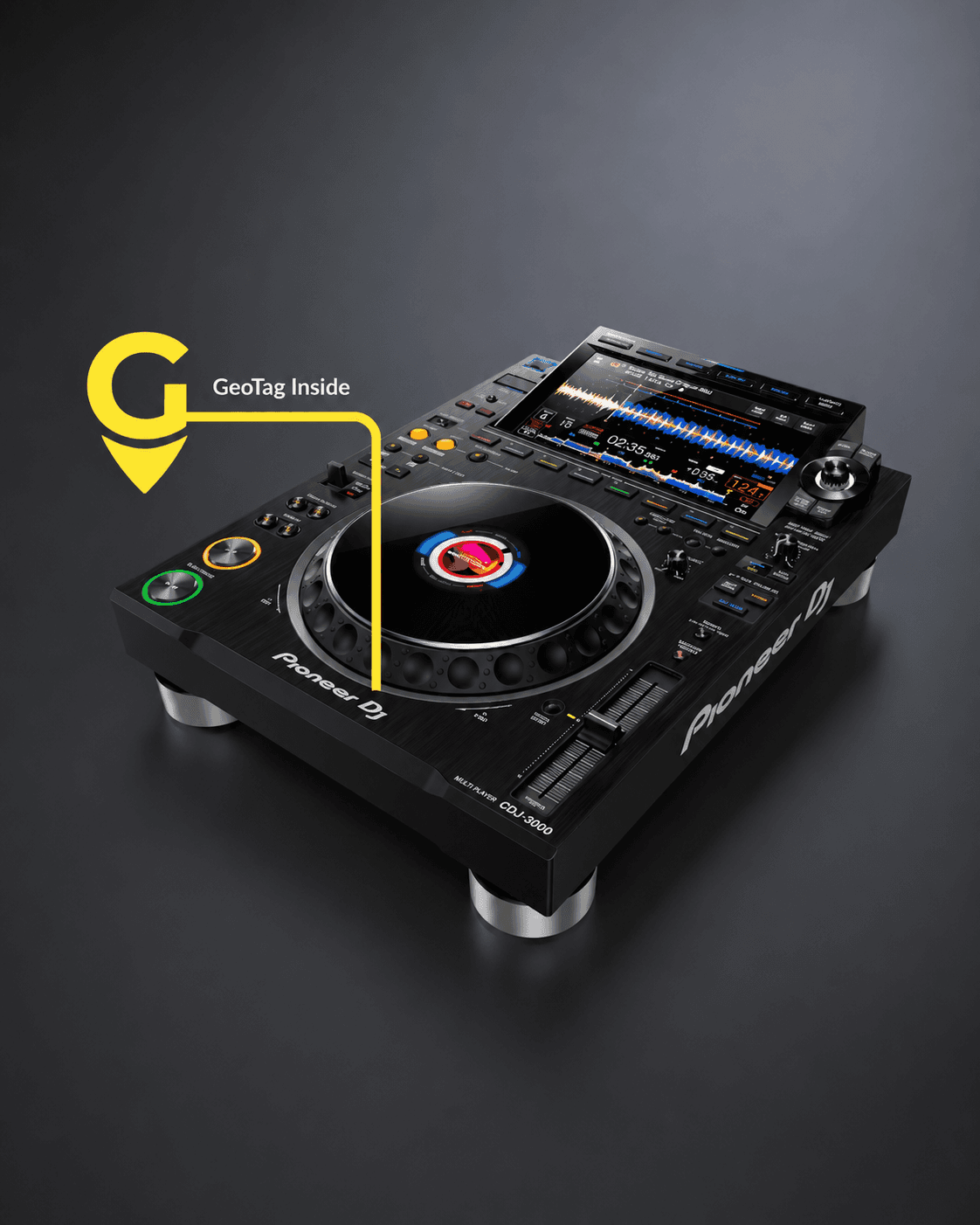

GeoTag CDJ-3000 Retrofit

The flagship professional DJ multi player from Pioneer Dj, now discretely tracked.

Purpose build retrofit module with 10 minute installation.

Purpose build retrofit module with 10 minute installation.

12 day battery

12 day battery

Retrofit

Retrofit

Rechargeable

Rechargeable

Best for: Pioneer CDJ3000

What’s in the Box?

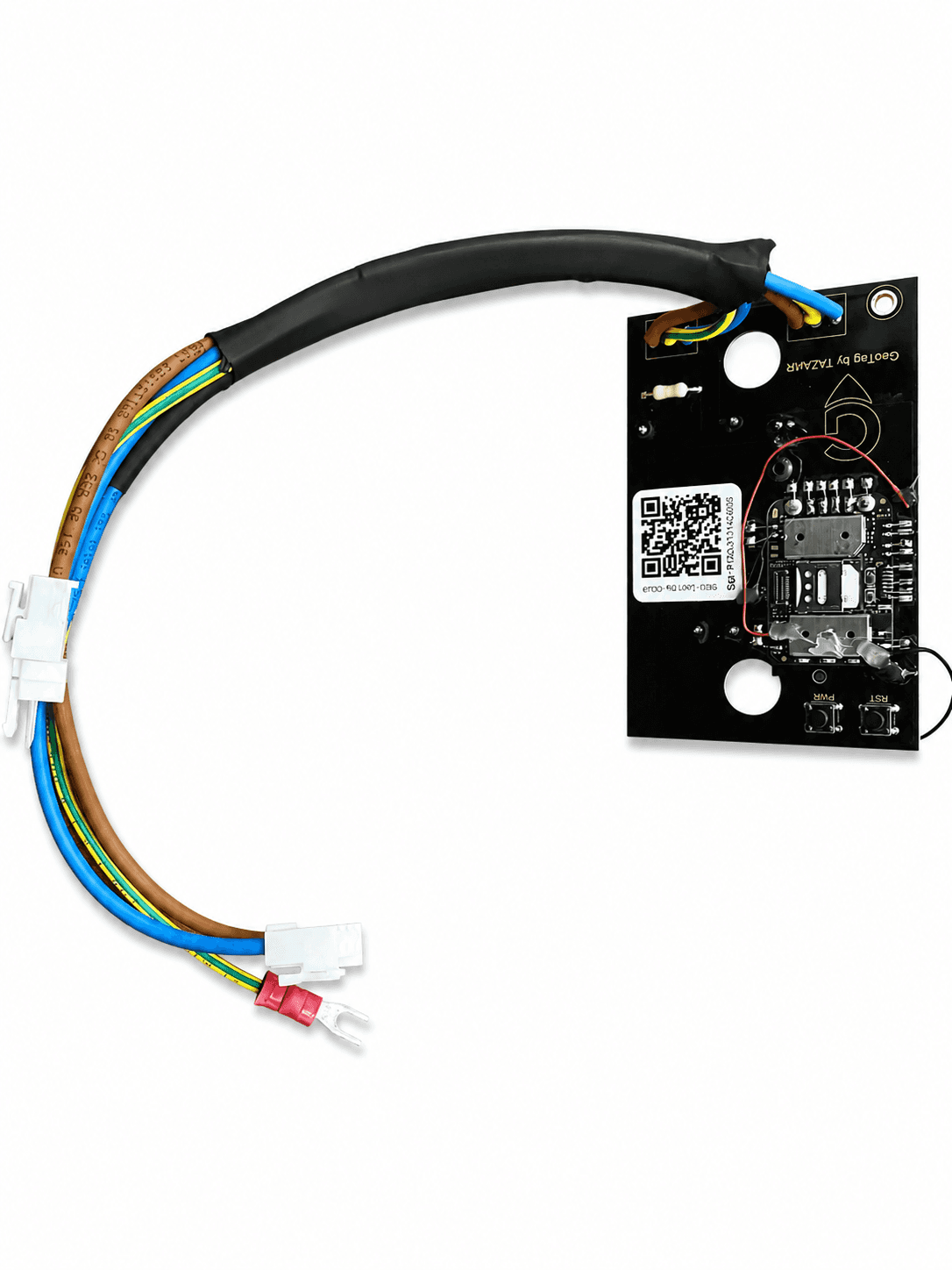

GeoTag device

Fitted SIM Card

QR activation

Installation Guidance

Installation Guidance

1. Open the CDJ-3000

Remove the base and rear screws, then carefully lift the top section to access the internal components and power supply area. Ribbon cables are temporarily disconnected to allow access.

2. Position the GeoTag Module

The GeoTag unit fits neatly into the internal cavity beneath the power supply section between the CDJ feet.

3. Connect Power

GeoTag integrates inline with the CDJ power connection:

  • Disconnect the existing CDJ power cable

  • Connect the GeoTag power harness

  • Attach the earth cable securely

  • Reconnect the CDJ cable to complete the circuit

4. Reassemble the Unit

Reinstall the power supply cover, secure cables using cable ties, reconnect ribbon cables, and refit all screws.

5. Activate GeoTag

Scan the supplied QR code using your smartphone to register and activate the tracker. A secondary QR sticker can be placed underneath the CDJ for future access.

Specs

Hardware & Design

Best for

CDJ300s

Dimensions

95 x 62 x 40mm

Weight

153g

LED Indicators

Red = Power, Orange = GSM, Blue = GPS

Certifications

RoHS, CE, UKCA

Power Button

Accessible via power button on the board

Reset Button

Accessible via power button on the board

Power & Battery

Power Input

100-240v 50/60hz 0.6A Max, independent fuse with direct output to not interfere with the existing power supply.

Battery Type

Lithium Ion

Battery Capacity

2000 mAH

Runtime

12 days @10-min intervals

Connectivity & Tracking

SIM

2G + 4G

Connectivity

GSM/GPRS & LTE modules with 170+ country global SIM. Variable performance in the USA.

Location Capture

GPS & A-GPS

GPS Accuracy

<10m (outdoor) and 10-50m indoors

Location Update Interval

Configurable 1 min – 120 min; motion-sensitive sleep feature

Operating Conditions

Temperature Range

–20 °C to +45 °C

Humidity Range

20–95 % humidity

Software and Network Service

Software and Network Service

Every GeoTag comes with a global SIM card fitted and 12 months service post-activation.


Prices per unit start at £225 RRP with trade and volume discounts available.

Renewal starts at £59.00 /year per device.

"We know exactly where the equipment is supposed to be on every site we work, and using GeoTag we can set up alerts if our gear moves outside the area it is supposed to be in."

Tim James, MD of Blue River Audio and Professional DJ


Frequently Asked Questions

How long does the standby battery last?

Is the battery rechargeable?

How long does it take to install?

Does it support continuous tracking during motion?

Will this void CDJ3000 warranty?
