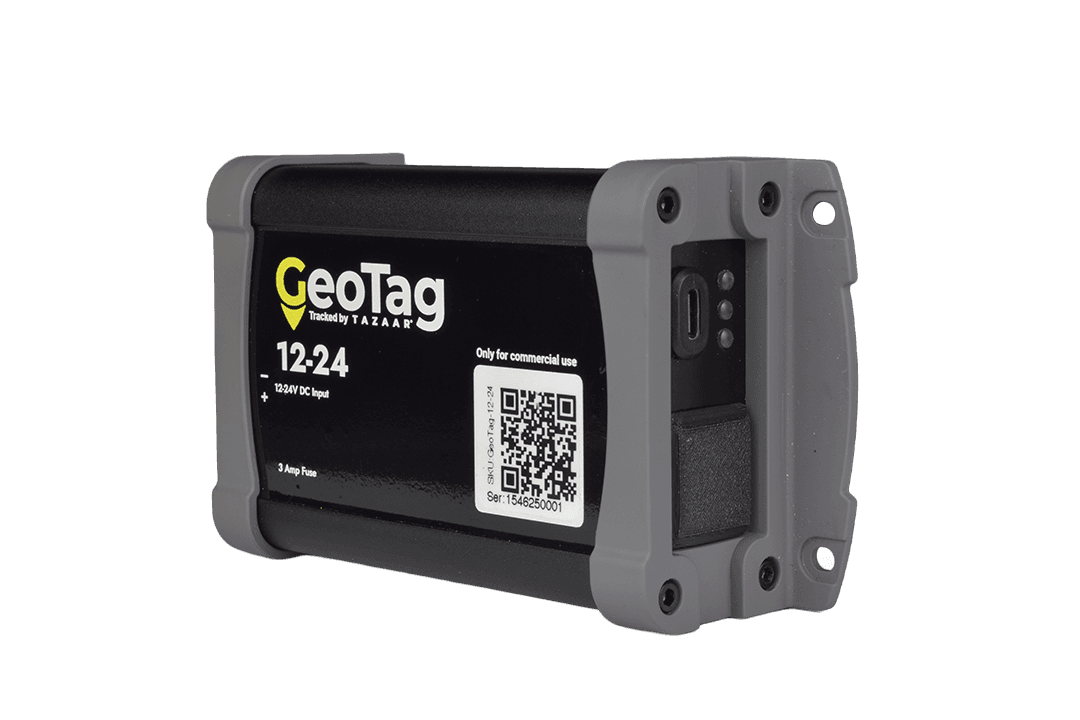

GeoTag 12/24V
Always-on tracking for powered assets on the move.
Best for: Mains Powered Distribution Units, Generators, Vehicles
The problem?
Mobile powered assets, like generators, distribution racks, and vehicles, often travel between sites, venues, or storage yards without clear tracking.
If they go missing or get delayed, operations stall and recovery costs rise.
The Solution:
GeoTag 12/24V connects directly to your asset’s power system for uninterrupted GPS tracking. Even when power is cut, its internal backup battery keeps sending location data for weeks, ensuring you never lose sight of your kit.
Perfect for fleet operators, rental companies, and event power suppliers, it delivers constant, automated location updates with zero need for recharging or manual setup.
What’s in the Box?
GeoTag 12/24V device
Wiring harness
Screw kit (4x)
Activation sticker
Quick-start leaflet
Specs
Hardware & Design
Best for
Mains Powered Distribution Units, Generators, Vehicles
Dimensions
189x 79x 42mm
Weight
322g
Mount Type
4 screw mounting points

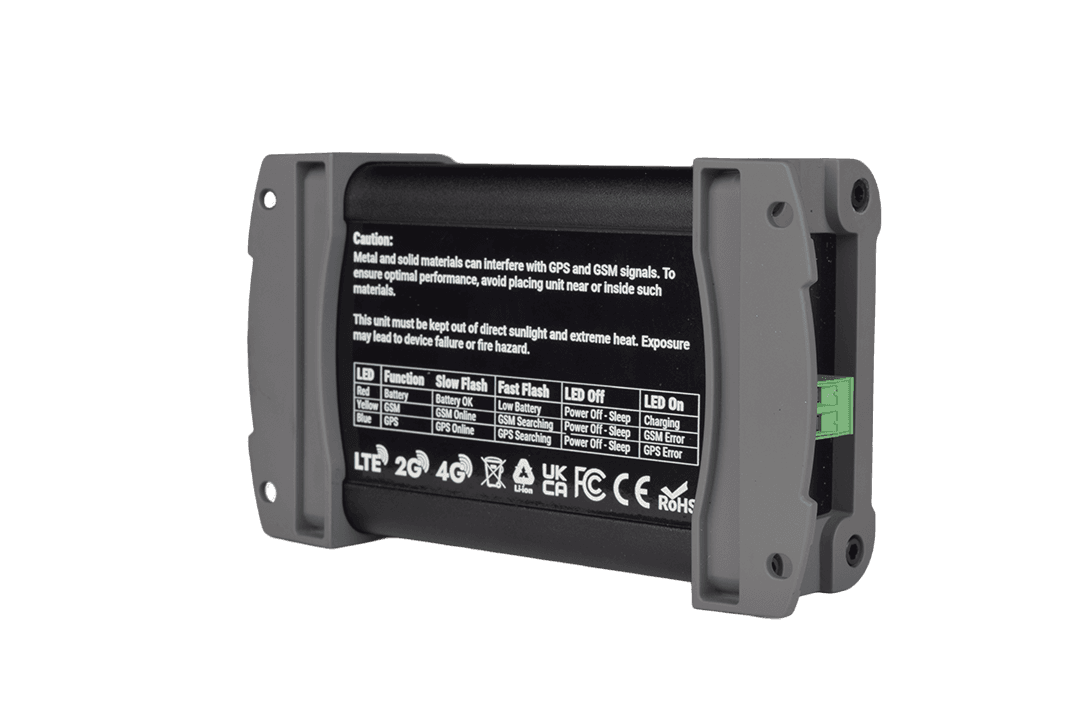

LED Indicators
Red = Power, Orange = GSM, Blue = GPS
Certifications
RoHS, CE, UKCA
Power Button
Accessible via reset pin
Power & Battery
Power
5V USB‑C, 12/24 V DC
Battery Type
Lithium Ion
Battery Capacity
9000 mAh
Runtime
65 days @10-min intervals
Daily Usage*
~142 mAh
Power Adaptor
N/A
Connectivity & Tracking
SIM
2G + 4G, provided
Connectivity
GSM/GPRS & LTE modules with 170+ country global SIM
Location Capture
GPS & A-GPS
GPS Accuracy
<10m (outdoor)
Location Update intervals
Configurable 1 min – 120 min; motion-sensitive sleep feature
Operating Conditions
Temperature Range
–20 °C to +45 °C
Humidity Range
20–95 % humidity
Renewal starts at £39.00 /year per device.
