GeoTag Case
Your case, now with built-in intelligence.
Best for: Flight Cases, LED Trailers, Carts
The problem?
Once a flight case or LED cart leaves your sight, you can’t tell where it is, if it’s in motion, or if it’s been opened.
Traditional asset management stops at the loading bay.
The Solution:
GeoTag Case turns any case into a self-reporting smart asset. Fully enclosed and AC-powered, it’s mounted directly into the case wall, making the tracker impossible to misplace and hard to tamper with.
Perfect for touring rigs, LED trailers, and long-term storage gear, GeoTag Case provides a constant data feed so you always know where your kit is and how it’s moving.
What’s in the Box?

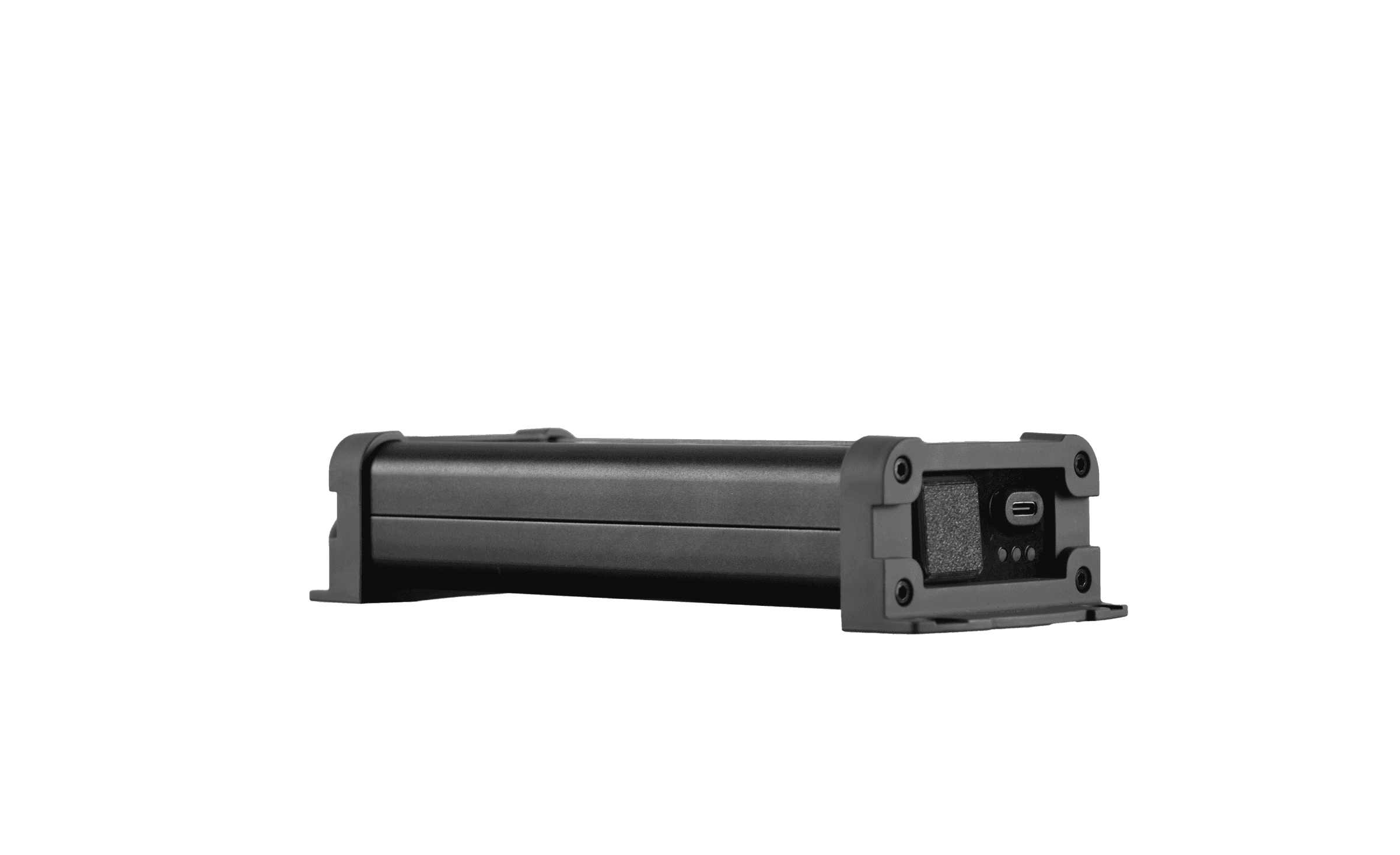

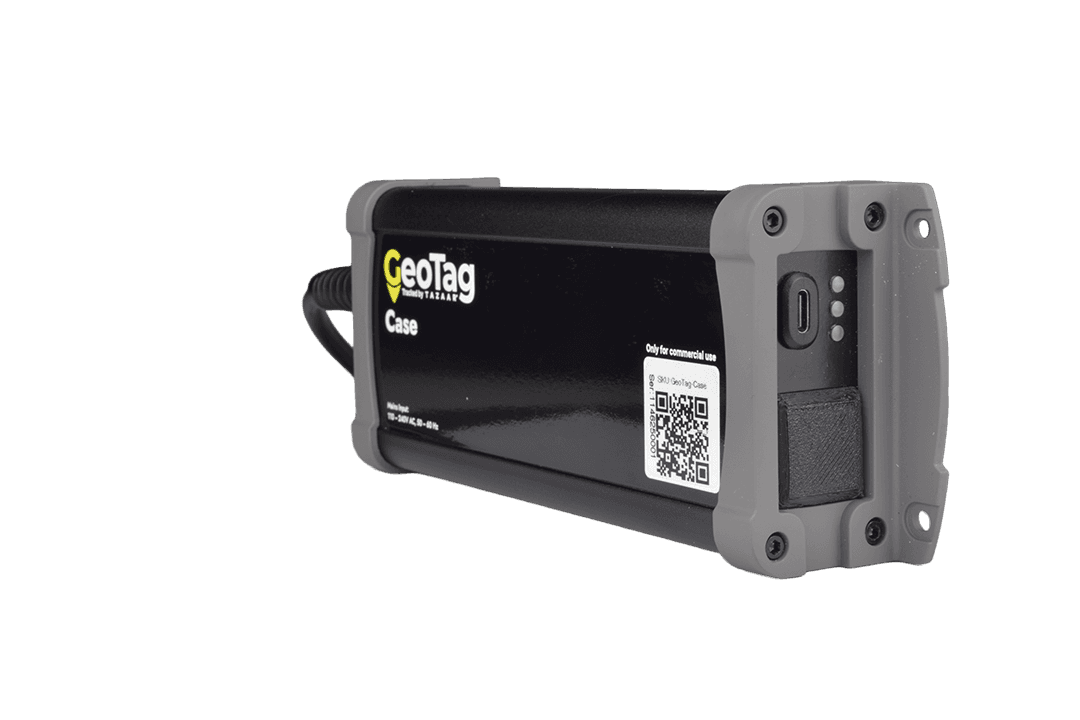

GeoTag Case sealed tracker unit
Activation QR label
Mounting guide
Screw kit (4x)

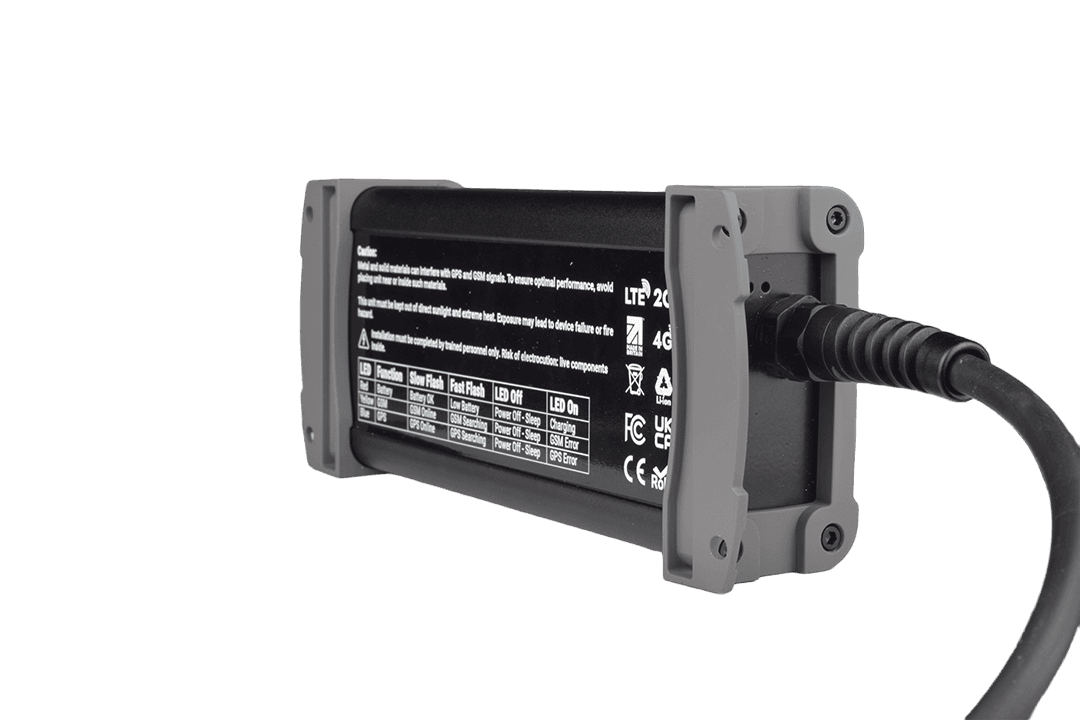

Includes Neutrik True1 AC connector (or trailing lead option depending on model).
Specs
Hardware & Design
Best for
Flight Cases, LED Trailers, Carts
Dimensions
199mm x 79mm x 42mm
Weight
530g
Mount Type
4 screw mounting points
LED Indicators
Red = Power, Orange = GSM, Blue = GPS
Certifications
RoHS, CE, UKCA
Power & Battery
Power Input
100V - 260V AC 50-60Hz (using MeanWell PSU)
Battery Type
Lithium Ion
Battery Capacity
16000mAH
Runtime
90 days @10-min intervals
Daily Usage*
~142 mAh
Power Adaptor
5v USB-C, Mains 100-260v 50-60Hz
Connectivity & Tracking
SIM
2G + 4G
Connectivity
GSM/GPRS & LTE modules with 170+ country global SIM
Location Capture
GPS & A-GPS
GPS Accuracy
<10m (outdoor)
Location Update Intervals
Configurable 1 min – 120 min; motion-sensitive sleep feature
Operating Conditions
Temperature Range
–20 °C to +45 °C
Humidity Range
20–95 % humidity
Renewal starts at £39.00 /year per device.
