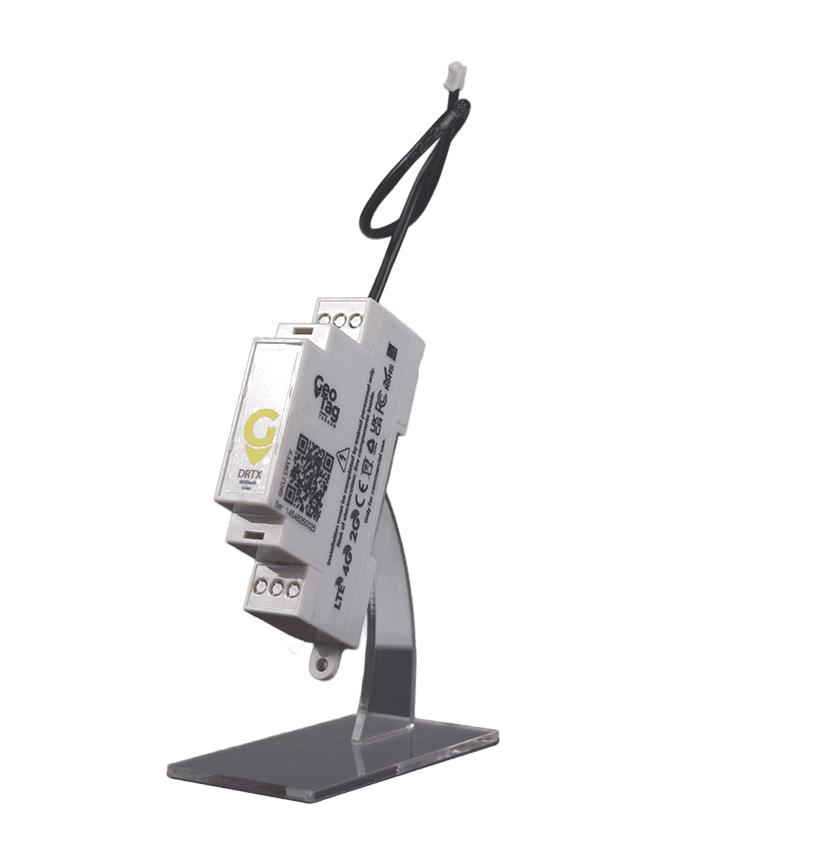

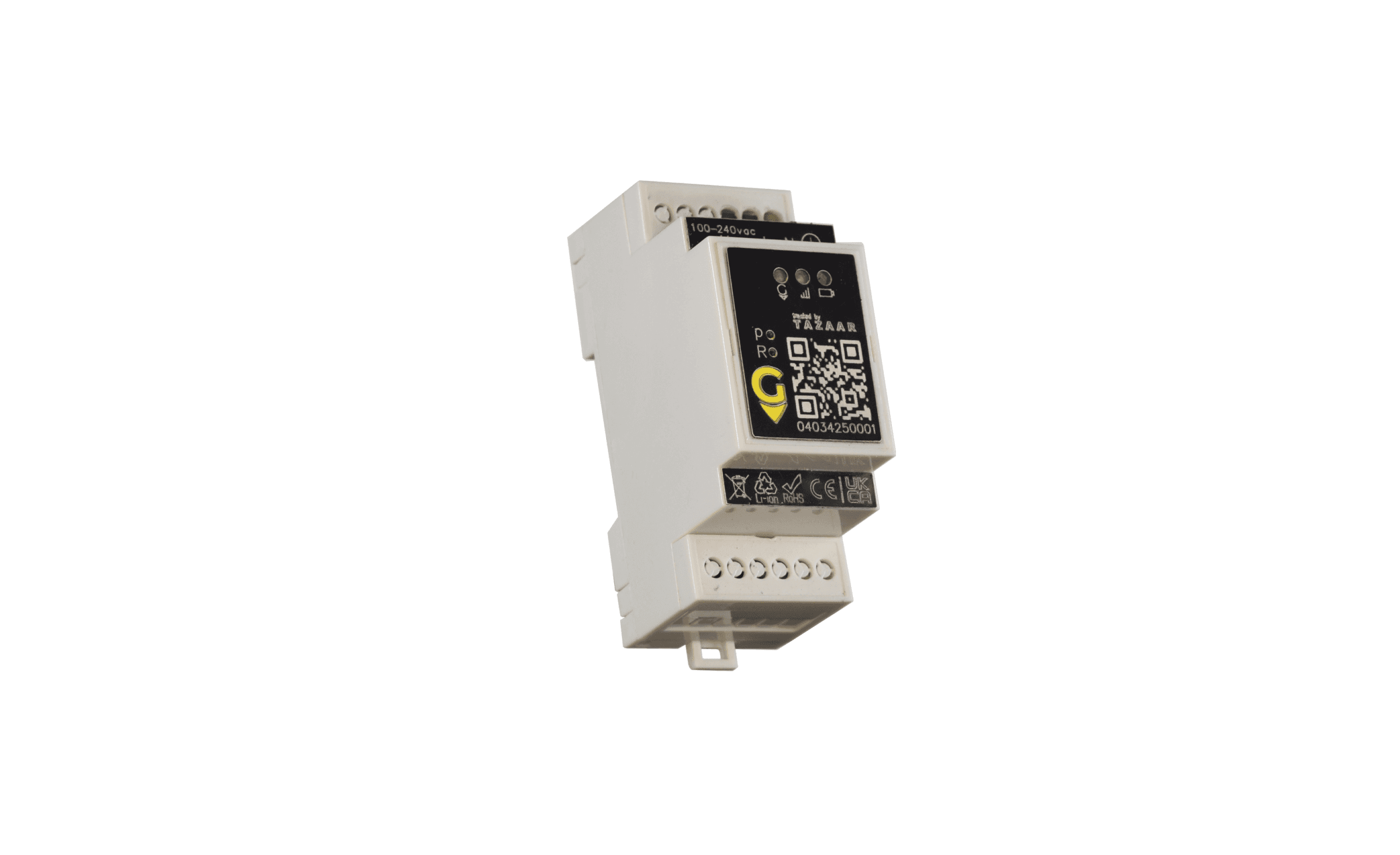

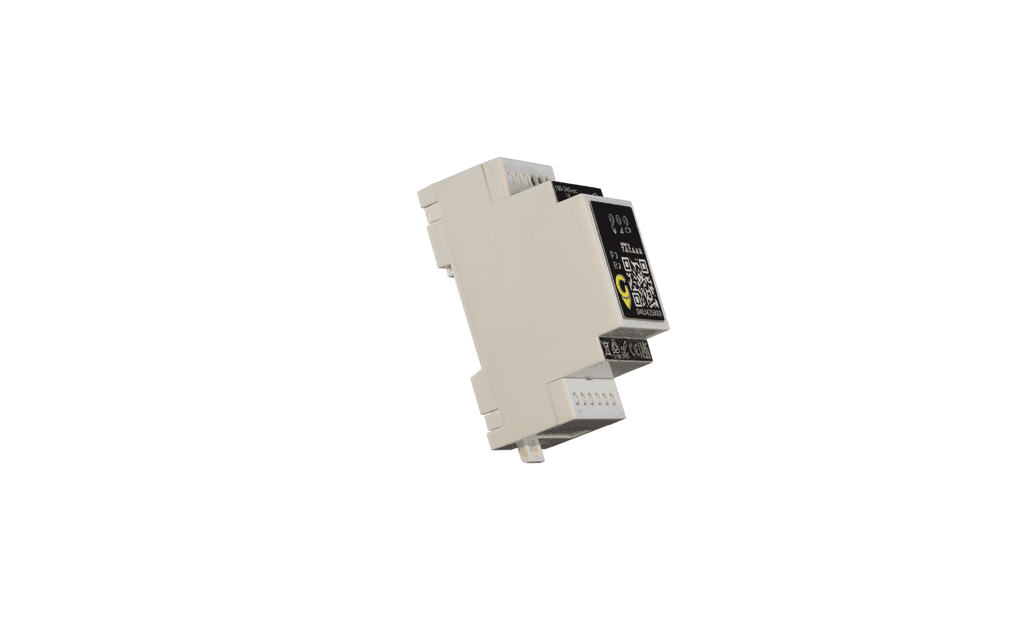

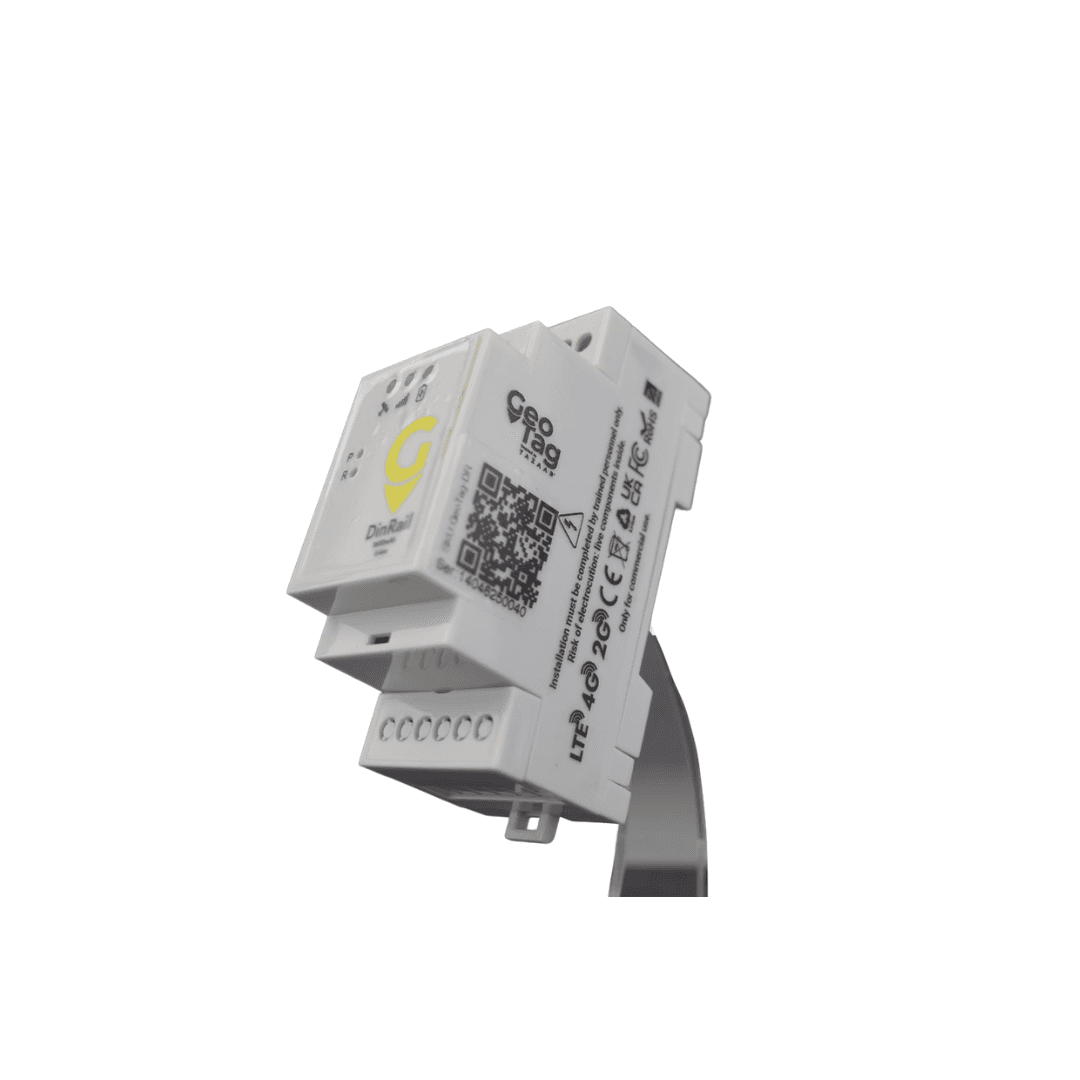

GeoTag DIN Rail
Industrial-grade tracking, right inside your power systems.

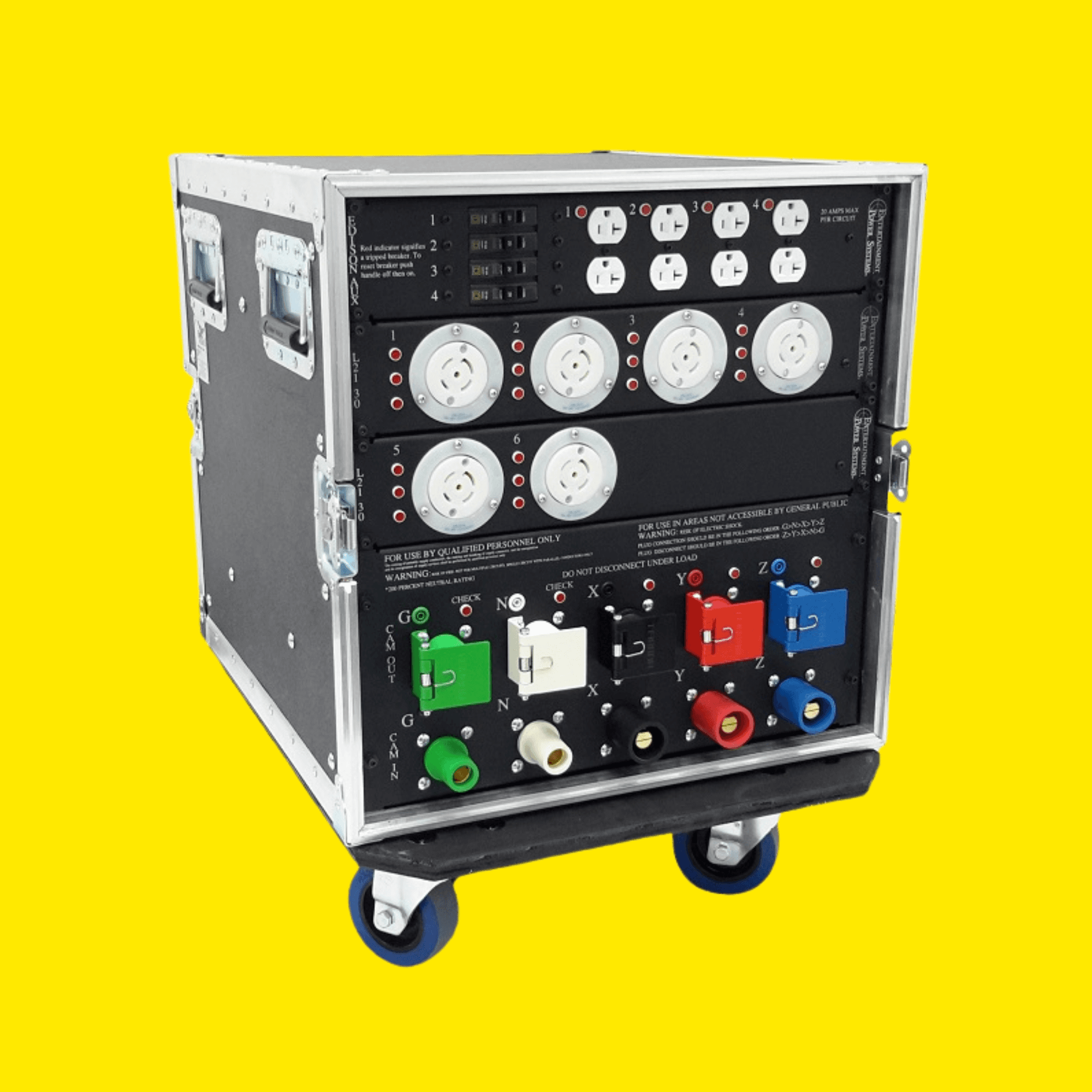

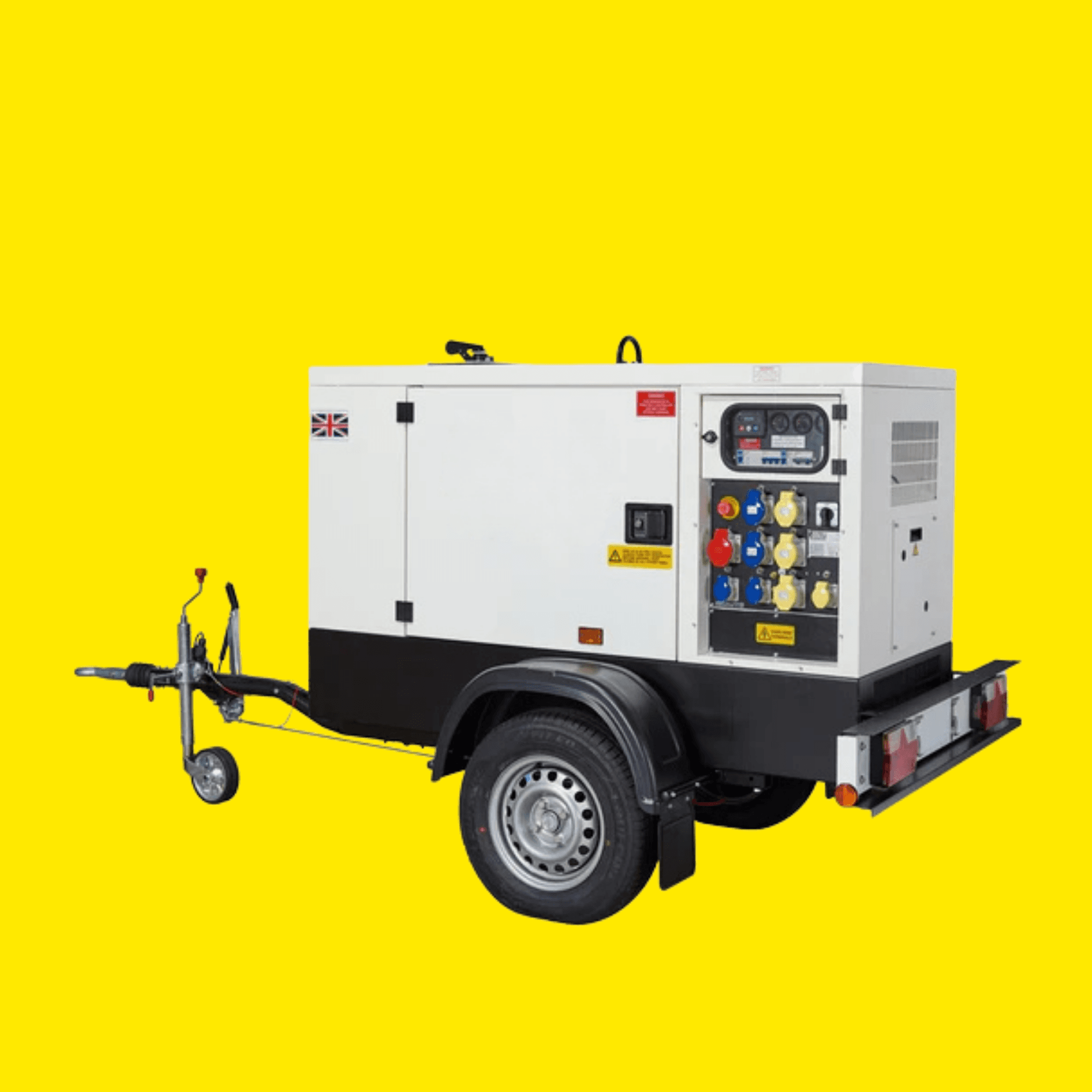

Best for: Distros, Generators, Portable Battery Power Units and Modular Data Centers.
The problem?
Power distribution units and generators are often stationary or hidden inside larger systems.
If one goes missing or is moved unexpectedly, finding it can be slow, costly, and disruptive.
The Solution:
GeoTag DIN Rail installs directly into your existing DIN-mounted infrastructure, giving you live GPS data without extra boxes, cables, or mounts.
Always powered when your system is running, it also has a backup battery so tracking continues during downtime or transport. Ideal for generator hire companies, event power suppliers, and industrial rack setups, it’s a set-and-forget solution that blends seamlessly into your existing equipment.
What’s in the Box?
GeoTag DIN Rail unit
Din rail mounting module (2x)
QR activation label
Quick setup leaflet
Easy integration into the industry standard DIN Rail format.
Optional Accessories

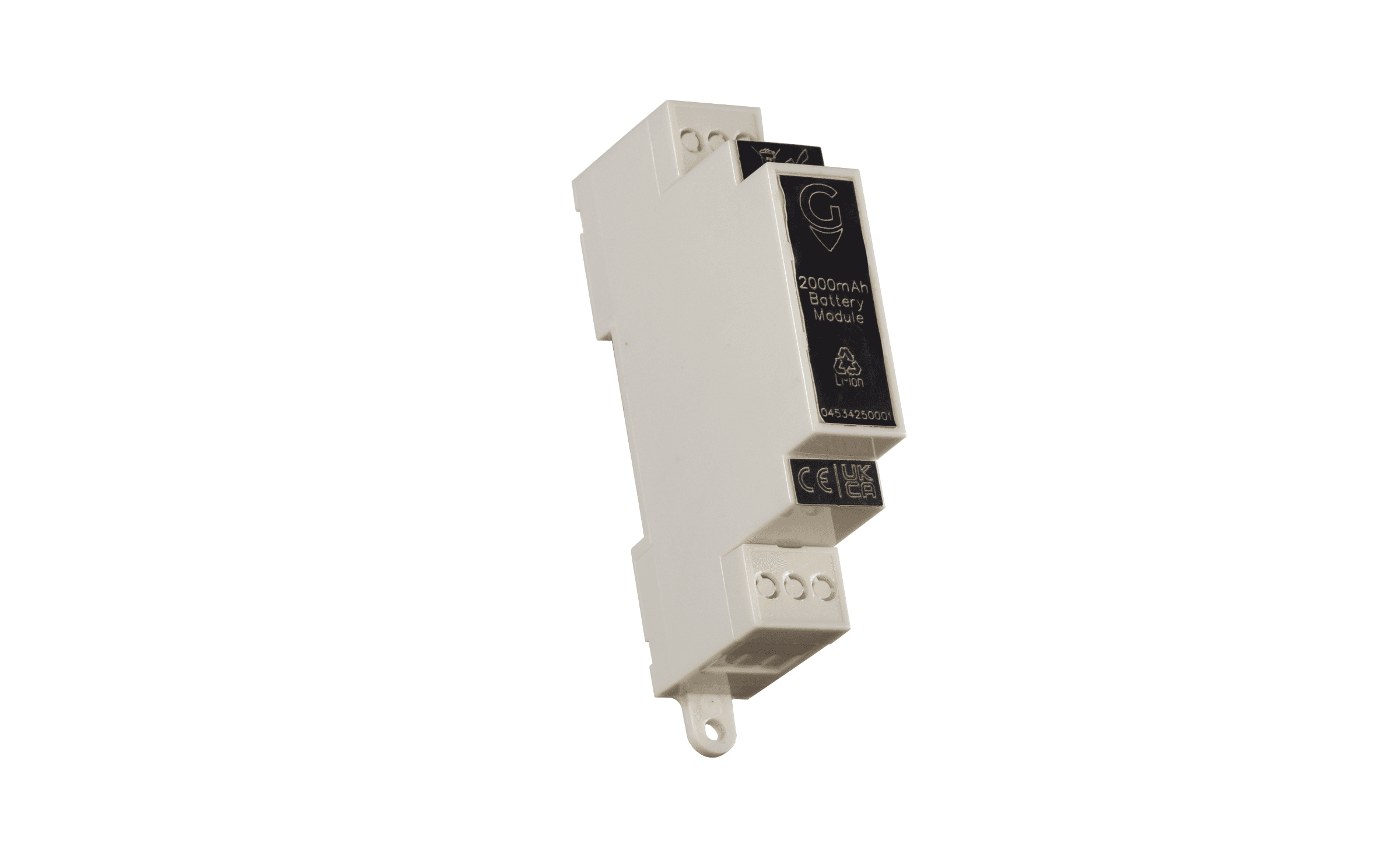

DIN Rail Modular battery pack.
2000mAh for an extra 12 days, larger sizes available.
Specs
Hardware & Design
Best for
Distros and Generators
Dimensions
90 × 36 × 58 mm
Weight
154g
Mount Type
DIN Rail Mounted 2 module unit

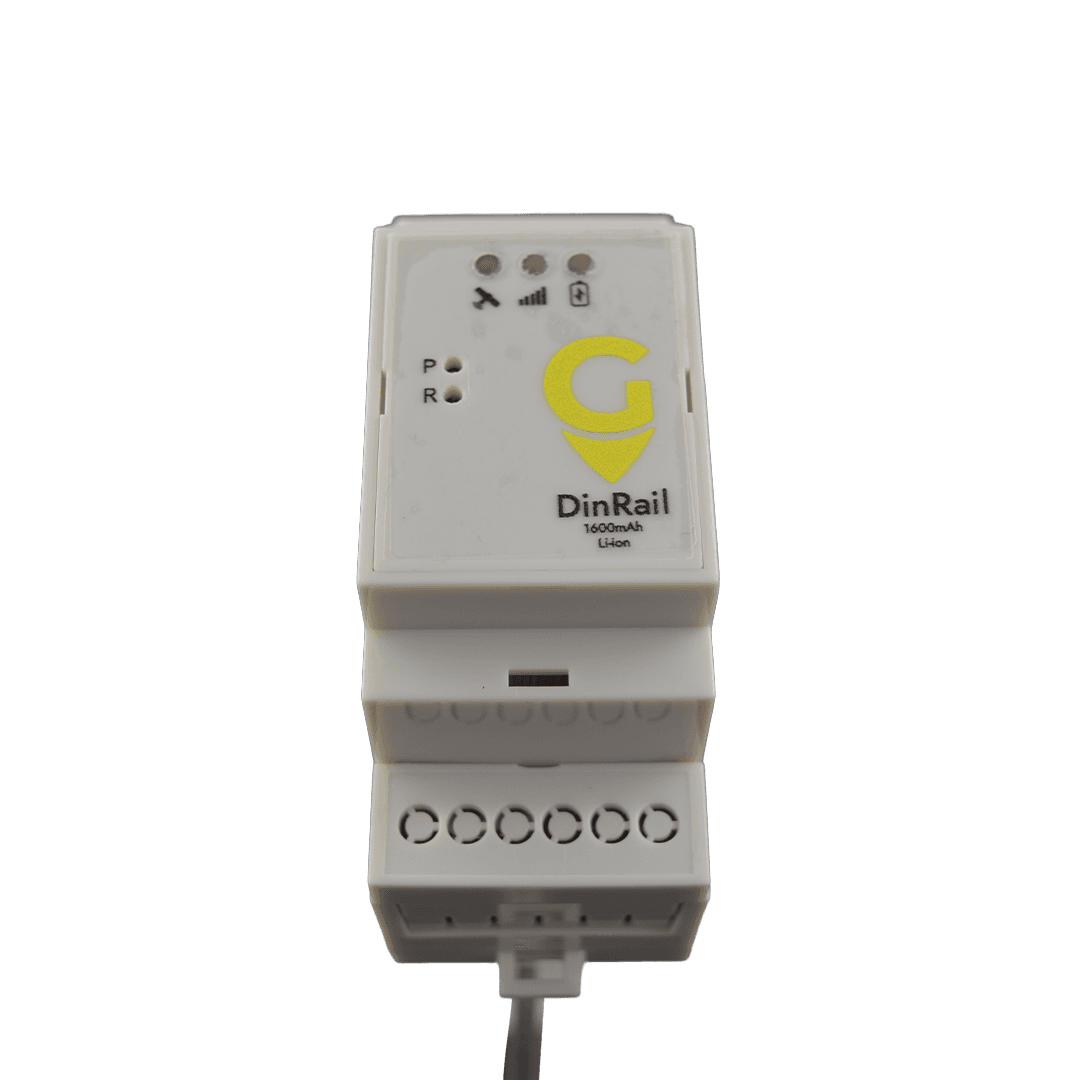

LED Indicators
Red = Power, Orange = GSM, Blue = GPS. Can be covered for discretion.

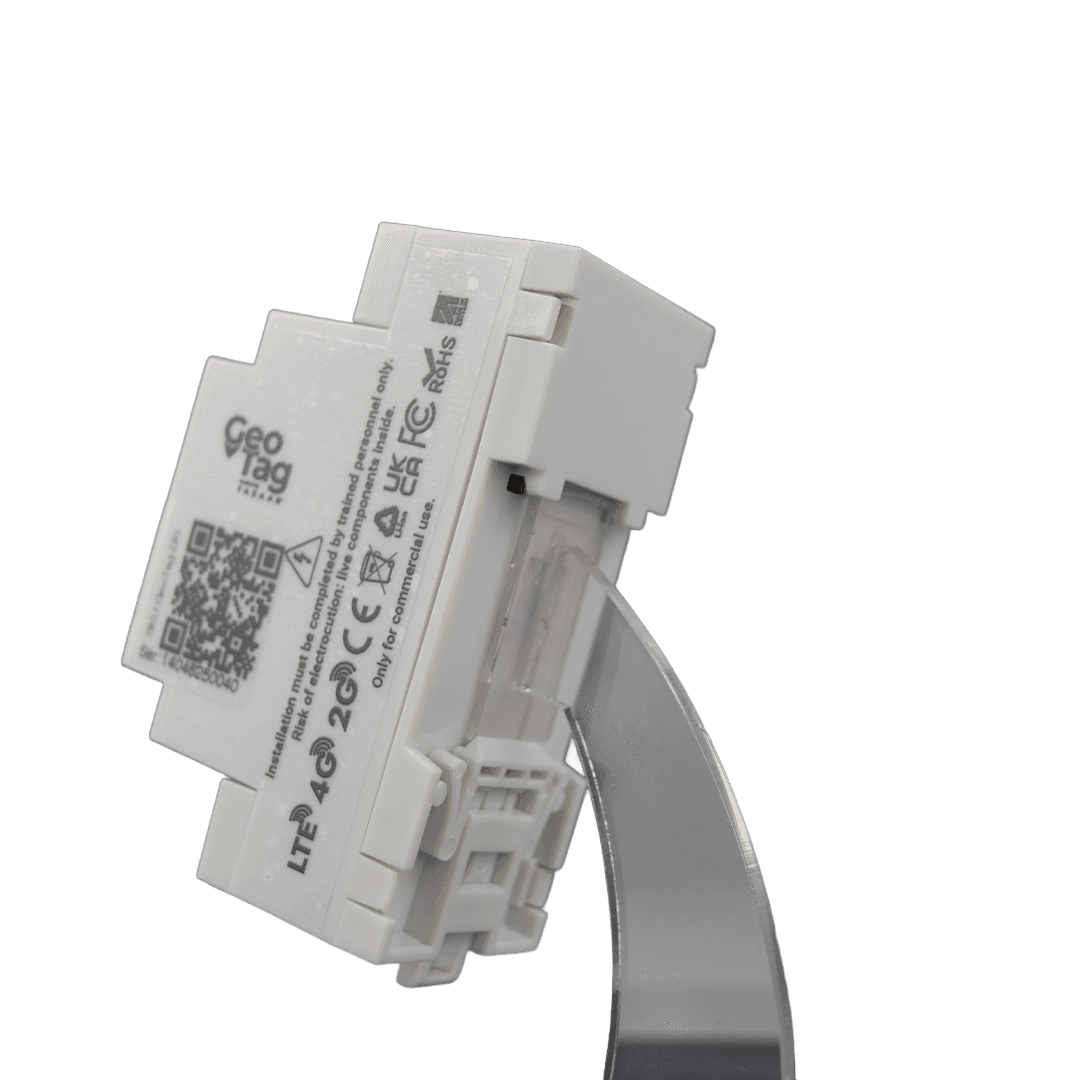

Certifications
RoHS, CE, UKCA
Power & Battery
Power Input
100-260V 50-60Hz
Battery Type
Lithium Ion
Battery Capacity
1,800 mAh
Runtime
10 days @10-min intervals, 5–7 days under continuous motion
Daily Usage*
~142 mAh
Power Adaptor
N/A
Connectivity & Tracking
SIM
2G + 4G
Connectivity
GSM/GPRS & LTE modules with 170+ country global SIM
Location Capture
GPS & A-GPS
GPS Accuracy
<10m (outdoor)
Location Update intervals
Configurable 1 min – 120 min; motion-sensitive sleep feature
Operating Conditions
Temperature Range
–20 °C to +45 °C
Humidity Range
20–95 % humidity
Renewal starts at £39.00 /year per device.
